Product Description
|
Item |
Side Fabric Translucid |
Roof Fabric Blackout |
ROOF Panama |
|
||
|
Type |
550gsm |
650gsm |
750gsm |
850gsm |
900gsm |
|
|
Color/Emboss |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
|
|
Testing |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard Test Method |
|
Base fabric |
PES |
PES |
PES |
PES |
PES |
DIN 60001 |
|
Yarn Count (nr/inch) |
20*20 |
20*20 |
23*23 |
23*23 |
30*30 |
DIN 1049-2 |
|
Titer of Yarn |
1000D |
1000D |
1000D |
1000D |
1000D |
DIN 2060 |
|
Weave Style |
L1/L1 |
L1/L1 |
L1/L1 |
L1/L1 |
P2/P2 |
DIN 9354 |
|
Weight of Base Fabric(g/m2) |
175 |
175 |
210 |
210 |
262 |
DIN12127 |
|
Thickness(mm) |
0.45 |
0.52 |
0.60 |
0.65 |
0.73 |
DIN EN ISO 2286-3 |
|
Width |
3.M |
3.M |
3.M |
3.M |
3.M |
DIN EN ISO 2286-1 |
|
Total Weight(g/m2) |
550±20 |
650±20 |
750±20 |
850±20 |
900±20 |
DIN EN ISO 2286-2 |
|
Tensile strength(N/5cm) |
2900/2600 |
2900/2600 |
3200/2900 |
3200/2900 |
4200/4000 |
EN ISO 1421 |
|
Tearing strength(N) |
300/260 |
300/260 |
350/320 |
350/320 |
550/500 |
DIN 53363 |
|
Adhesion strength(N/5cm) |
100 |
100 |
100 |
100 |
100 |
EN ISO 2411 |
|
Flame Retardancy |
B1 |
B1 |
B1 |
B1 |
B1 |
DIN 4102 |
|
Service Life |
5-7 Years outdoor |
5-7 Years outdoor |
5-7 Years outdoor |
5-7 Years outdoor |
7-9 Years outdoor |
|
|
Threshold Temperature |
﹣30℃~70℃ |
﹣30℃~70℃ |
﹣30℃~70℃ |
﹣30℃~70℃ |
﹣30℃~70℃ |
DIN EN 1876-1 |
|
Color Fastness |
7~8 |
7~8 |
7~8 |
7~8 |
7~8 |
DIN EN ISO 105 B02 |
|
Light Transmission |
10 |
10 |
0 |
0 |
8 |
ISO 13468-1 |
More information is provided by Superb Tent
1. Application:

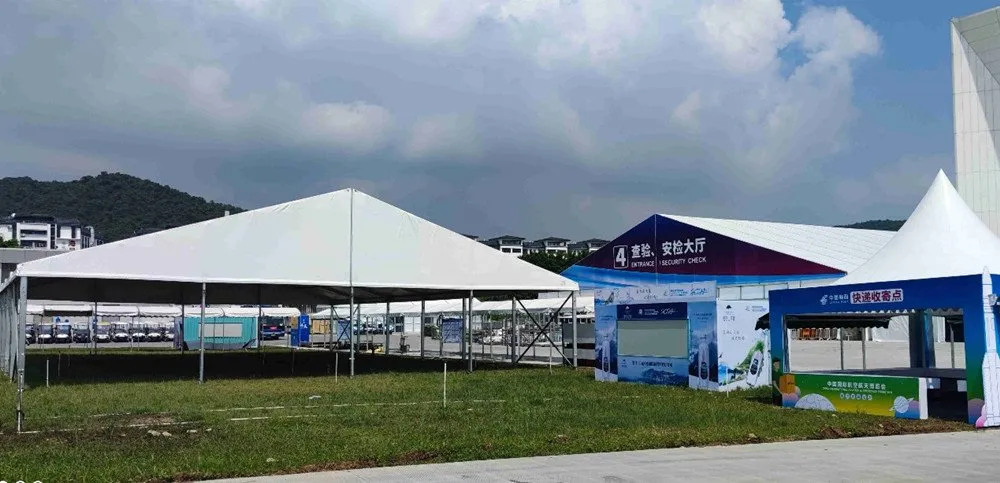

The middle clear span tents(MS series, A frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
2. Materials:
Fabric: Double PVC coated polyester fabric, 650-900g/sq. M, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Main frame profile size: 152X120X4mm;
Connections: Hot-DIP galvanized steel;
3. Life span of fabric(cover & sidewalls): 8-10years;
Life span of aluminum frame: 20-30years
4. Structure safety parameters:
Wind load: 102km/h (0.5kn/M2)
Snow load: 25kg/sq. M
5. Color available: White, red, yellow, blue, green, black, grey, transparent etc
6. Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; Chairs, tables, & other furniture for the parties are also provided for your option.
PRODUCT SELL ING POINTS
Why do i buy span tent?
1. Waterproof. Tent roof will be covered with wa- terproofing PVC fabric.
2. Flame retardant The tent tarp would help to slow the fire from spreading.
3. Sun-blocking. 850g/sqm PVC tarp with insula-tion layer would help to block sunlight
4. Wind withstand. Tent structures from us can withstand wind at the speed from 80-120 km/h.
5. Long lifespan. The tent structures are with a lifespan of 20+ years.
Quotation steps:
1st step-3D design per client's quest
2nd step-trial install before leave factory
3rd step-install manual delivered along with shipment;
4th step-client install tent
TENT OPTIONAL ACCESSORIES
Tent roof optional:Transparent cover, white cover ; red color green color, other color option
Tent Wall optional:PVC plain wall, PVC wall with clear windows,
PVC clear Tent Door optional:glass door,sliding door, folding door, solid door
Tent floor optional:Wooden floor with plastic base, cassette wooden floor
Tent fixation optional;Expand screw, ground stake, weight plate
Tent decoration:Roof lining, sidewall drapery
Other option:lighting,rain gutter, carpet,tables, and chairs air-conditioner
