Product Description
|
Item |
Side Fabric Translucid |
Roof Fabric Blackout |
ROOF Panama |
|||
|
Type |
550gsm |
650gsm |
750gsm |
850gsm |
900gsm |
|
|
Color/Emboss |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
White R9016 Arcylic/ Arcylic/glossy |
|
|
Testing |
Standard |
Standard |
Standard |
Standard |
Standard |
Standard Test Method |
|
Base fabric |
PES |
PES |
PES |
PES |
PES |
DIN 60001 |
|
Yarn Count (nr/inch) |
20*20 |
20*20 |
23*23 |
23*23 |
30*30 |
DIN 1049-2 |
|
Titer of Yarn |
1000D |
1000D |
1000D |
1000D |
1000D |
DIN 2060 |
|
Weave Style |
L1/L1 |
L1/L1 |
L1/L1 |
L1/L1 |
P2/P2 |
DIN 9354 |
|
Weight of Base Fabric(g/m2) |
175 |
175 |
210 |
210 |
262 |
DIN12127 |
|
Thickness(mm) |
0.45 |
0.52 |
0.60 |
0.65 |
0.73 |
DIN EN ISO 2286-3 |
|
Width |
3.M |
3.M |
3.M |
3.M |
3.M |
DIN EN ISO 2286-1 |
|
Total Weight(g/m2) |
550±20 |
650±20 |
750±20 |
850±20 |
900±20 |
DIN EN ISO 2286-2 |
|
Tensile strength(N/5cm) |
2900/2600 |
2900/2600 |
3200/2900 |
3200/2900 |
4200/4000 |
EN ISO 1421 |
|
Tearing strength(N) |
300/260 |
300/260 |
350/320 |
350/320 |
550/500 |
DIN 53363 |
|
Adhesion strength(N/5cm) |
100 |
100 |
100 |
100 |
100 |
EN ISO 2411 |
|
Flame Retardancy |
B1 |
B1 |
B1 |
B1 |
B1 |
DIN 4102 |
|
Service Life |
5-7 Years outdoor |
5-7 Years outdoor |
5-7 Years outdoor |
5-7 Years outdoor |
7-9 Years outdoor |
|
|
Threshold Temperature |
﹣30℃～70℃ |
﹣30℃～70℃ |
﹣30℃～70℃ |
﹣30℃～70℃ |
﹣30℃～70℃ |
DIN EN 1876-1 |
|
Color Fastness |
7～8 |
7～8 |
7～8 |
7～8 |
7～8 |
DIN EN ISO 105 B02 |
|
Light Transmission |
10 |
10 |
0 |
0 |
8 |
ISO 13468-1 |
1.Frame Part of Auto Show Tent
(1)The main parts of Auto Show Tent are made of aluminum alloy and the spare parts are made of steel.
(2)All aluminum components are technically anodized and all steel parts are well hot-DIP galvanized.
2.Cover part of Auto Show Tent
(1)Surface material:Double PVC opaque self-cleaning cloths
(2)Ridge cloths weight:750G/M2 Surround cloths weight :650G/M2
(3)Inflaming retarding :Internal standard B1
(4)Temperature range:-30-+70°C
(5)Tensile strength warp 2481 N/5cm across warp 2150 N/5cm
(6)Tearing strength warp 188N across warp 322N
Notice:Withstand wind 8-9 level
3.Product material

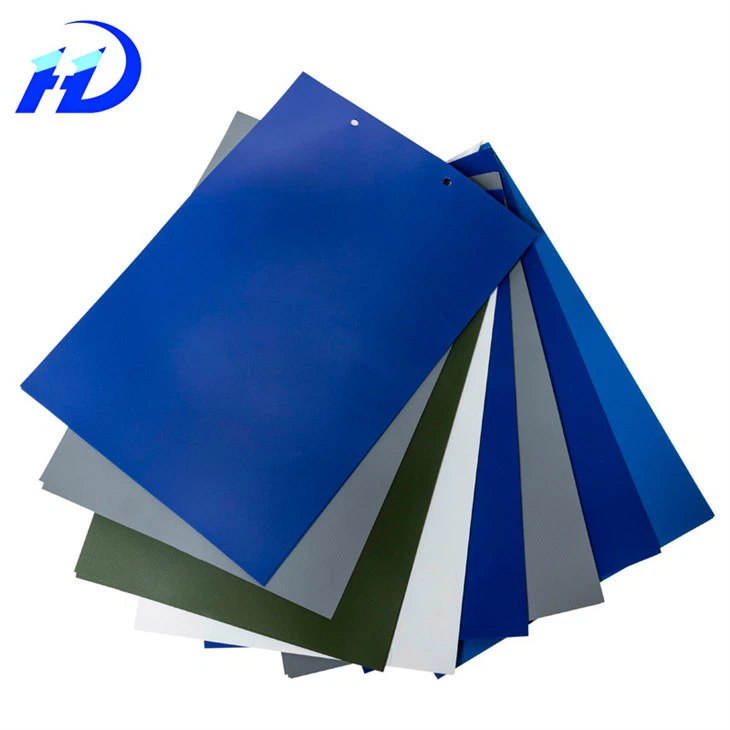

(1) The roof and sidewall fabric cover are made of double pvc coated polyester textile.
(2) The fabric is good at waterproof ,fireproof, UV resistant and with Self-cle aning function.
(3) The fabric is flame retardant to DIN4102, M2. Grade B1.( difficult to burn,self-extingui shing when the cloth is off fire after 3 seconds).
(4) The weight of fabric is from 650g/sq .m to 850g/sq.m.
1)Surface material:double PVC opaque self-cle aning cloths
2)Ridge cloths weight 750g/m2 Surround cloths weight :650g/m2
3)Inflaming retarding :Internal standard
4)Temperature range:-30- - +70*C
5)Tensile strength warp 2481 N/5cm across warp 2150 N/5cm
6)Tearing strength warp 188N across warp 322N
Notice:Withstand wind 8-9 level
4.Auto Show Tent Specification
Outdoor Simple Removable Car Auto Show Tent
(1)Span width:Any size between 3m and 40m
(2)L ength:No limite, extended by +3m/ +5m, such as 15m,18m,21m,24m../ 20m, 25m, 30m ,40m...
(3)Connettore:3m/5m
(4)Eave height:2 54m
5.Auto Show Tent Packaging & Shipping
(1)Auto Show Tent Aluminum frame packed in membrane film;
(2)Hardware packed in woven bag;
(3)Roof and sidewall in professional PVC carry bag;
(4)Customized package for Auto Show Tent.
Main Features of Double Decker Solution
1. Different Roof Type. Double Decker system can supply in "A" frame, thermo roof, and arch roof type.
2. Double Capacity and Application in One Building.
2 story tents allow increasing the capacity by expanding upward on the limited land.
